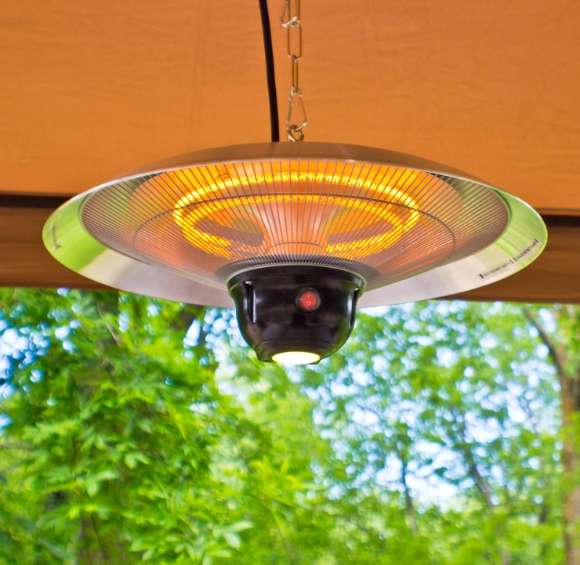

The Hidden Weak Spot in IP44 Infrared Heaters
If you’ve ever dealt with IP44 infrared heaters, you know they’re basically fighting a war on two fronts: moisture on the outside and blistering heat on the inside. Most people worry about the heating element failing. But honestly? The real headache is usually where the lead wires enter the chassis. That’s where things go south. If that seal gives up, you’re looking at a short circuit. Plain and simple.
Why seals actually fail
A lot of these heaters rely on basic rubber grommets. They work… for a while. But in a high-wattage setup, those grommets basically get baked. They turn brittle, they crack, and eventually, they shrink. Once you’ve got a gap, humidity and dust just slide right in. It creates a little bridge for electricity to jump from the live wire to the metal housing. We see this all the time with “budget” builds. They just aren’t designed to handle constant exposure to 200°C+ radiant heat.
Doing it the right way
We stopped relying on a single gasket a long time ago. Instead, we use high-temp silicone potting paired with reinforced compression glands. Think of it as “encapsulating” the wire. The potting compound fills every single tiny void, which kills the air gaps where condensation likes to hide. But here’s the thing: the seal is only half the battle. You’ve got to use fluorine-based or high-spec silicone insulation for the wires. If you use cheap PVC, it doesn’t matter how good your seal is—the wire will just melt and peel back, leaving your copper exposed.
The trade-off
Now, there is a catch. When you seal wires this tightly, they’re locked in. You can’t just tug them out and swap them if a lead snaps. You’ll probably have to replace the whole sealed assembly. It’s a bit of a toss-up. You lose some of that “quick fix” serviceability, but in exchange, you get a system that doesn’t blow a fuse every time the weather gets humid. One last tip: double-check your circuit breakers for the initial inrush current. A great seal stops the shorts, but it won’t change the raw power those quartz tubes pull when they kick on.
